Over the course of this series, I’ve covered the principles, generation and some fun uses of the distances stored in SDFs. However they have another very useful property – the gradient. In this post I’ll cover the basics of a gradient, and demonstrate a few simple uses of it.

The Gradient

Hopefully after the past 7 posts it’s become clear that a signed distance field gives you the distance to the closest edge from any point. The gradient (sometimes referred to as the differential) points either directly towards or away from the closest edge:

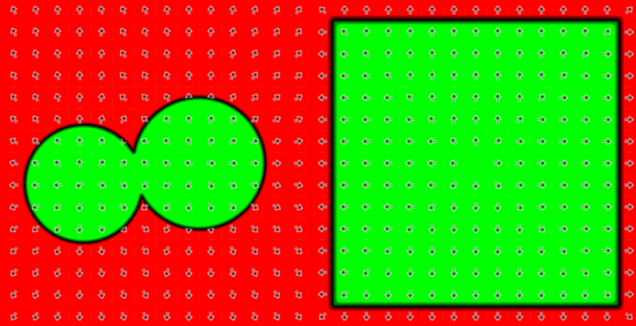

This diagram shows the standard distance visualisation’ for 2 fields used earlier in this blog. Overlaid are arrows that show the gradient. Inside the field, where the distance is negative, the gradient points directly towards the edge. Outside it, the gradient points directly away from the edge. These directions can be expressed as a 2D vector, which is referred to as the gradient vector. In a signed distance field, that vector is always of unit length (more on this later).

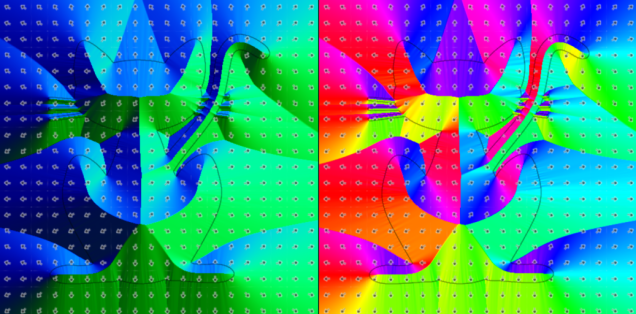

The gradients for our cat can be visualised for in a couple of ways:

On the left, gradient.x (-1 to 1) is shown in the green channel and gradient.y (-1 to 1) is shown in the blue channel. My favoured visualisation on the right converts the gradient to an angle between 0 and 360 degrees, then uses the result to calculate a hue.

This next bit is a little mathematical, so if you don’t care about it, just know that:

• The gradient of a point represents the direction towards (if outside the geometry) or away from (if inside the geometry) the closest edge
• The gradient of a signed distance field is always a unit vector
• We’re updating SignedDistanceFieldGenerator.End() to calculate and store the gradient vector in the green and blue channels of the field texture
• To improve the field quality, I will also briefly introduce (but not go over in full) an improvement to our existing sweeping algorithm called an Eikonal Sweep

If you like, skip to the next section about bevels, or read on for some theory and codez!

Some theory

Calculation of the gradient requires a new concept – the partial derivatives of the field in x and y. This complex sounding term actually just means the rate of change in the x direction, and the rate of change in the y direction. To begin, assume the following definitions:

• The distance stored in the pixel at coordinate [i,j] is referred to as U_i,j
• The left neighbour at [i-1,j] is referred to as U_i-1,j
• The right neighbour at [i+1,j] is referred to as U_i+1,j
• The bottom neighbour at [i,j-1] is referred to as U_i,j-1
• The top neighbour at [i,j+1] is referred to as U_i,j+1

With these in mind, now consider the rate of change in X. To calculate it, we need to choose which neighbour (left or right) is closer to the edge (i.e. which is smaller).

• The smallest horizontal neighbour will be referred to as U_H
• If the left neighbour (U_i-1,j) is smallest, U_H = U_i-1,j and delta X (or dX) is -1
• If the right neighbour (U_i+1,j) is smallest, U_H = U_i+1,j and delta X (or dX) is +1
• The change in distance, U_H-U_i,j is called delta U, or dU
• Finally, the partial derivative in X is dU divided by dX, written dU/dX

In pseudo code:

GetPartialDerivativeInX(X,Y)
    //read Uij, Ui-1,j and Ui+1,j
    distance = GetDistance(X,Y) //Uij
    leftNeighbour = GetDistance(X-1,Y) //Ui-1,j
    rightNeighbour = GetDistance(X+1,Y) //Ui+1,j

    //choose either left or right neighbour to calculate
    //deltaU and deltaX
    if leftNeighbour < rightNeighbour:
        dU = leftNeighbour - distance
        dX = -1
    else
        dU = rightNeighbour - distance
        dX = 1
    end

    //return the result
    return dU/dX
end

We can do exactly the same for the partial derivative in Y (dU/dY), by calculating the smallest vertical neighbour (U_V) and executing the same logic. Pseudo code for the partial derivative in Y is thus:

GetPartialDerivativeInY(X,Y)
    //read Uij, Ui,j-1 and Ui,j+1
    distance = GetDistance(X,Y) //Uij
    bottomNeighbour = GetDistance(X,Y-1) //Ui,j-1
    topNeighbour = GetDistance(X,Y+1) //Ui,j+1

    //choose either top or bottom neighbour to calculate
    //deltaU and deltaX
    if bottomNeighbour < topNeighbour:
        dU = bottomNeighbour - distance
        dY = -1
    else
        dU = topNeighbour - distance
        dY = 1
    end

    //return the result
    return dU/dY
end

The gradient (or derivative) is simply a vector that contains [dU/dX, dU/dY]. For an SDF this should naturally be of unit length and not need to be normalized. Thus, in psuedo code:

GetGradient(X,Y)
    return [GetPartialDerivativeInX(X,Y),GetPartialDerivativeInY(X,Y)]
end

Hopefully that wasn’t too tricky, but if it was, don’t worry – as with most things in game dev, using it is more important than instantly getting the theory.

Calculating the gradient in code

Next, we’ll update SignedDistanceFieldGenerator.End() to iterate over every pixel, calculate the gradient vectors, and store them using the green and blue channels of the field texture:

for (int y = 0; y < m_y_dims; y++) {     for (int x = 0; x = 0 ? 1.0f : -1.0f;         float maxval = float.MaxValue * sign;         //read neighbour distances, ignoring border pixels         float x0 = x > 0 ? GetPixel(x - 1, y).distance : maxval;
        float x1 = x  0 ? GetPixel(x, y - 1).distance : maxval;
        float y1 = y < (m_y_dims - 1) ? GetPixel(x, y + 1).distance : maxval;

        //use the smallest neighbour in each direction to calculate the partial deriviates
        float xgrad = sign*x0 < sign*x1 ? -(x0-d) : (x1-d);
        float ygrad = sign*y0 < sign*y1 ? -(y0-d) : (y1-d);

        //combine partial derivatives to get gradient
        Vector2 grad = new Vector2(xgrad, ygrad);

        //store distance in red channel, and gradient in green/blue channels
        Color col = new Color();
        col.r = d;
        col.g = grad.x;
        col.b = grad.y;
        col.a = d < 999999f ? 1 : 0;
        cols[y * m_x_dims + x] = col;
    }
}

The code above is mostly a condensed version of the pseudo code to calculate the partial derivatives in X and Y, then combine them into a Vector2 gradient for every pixel. The only additions are:

• We use the sign of the source pixel to ensure all comparisons work correctly for inner (-ve) pixels
• Borders are handled by just assigning a ‘really big number’ to pixel coordinates that are out of bounds
• As a shortcut for dividing dU by 1 or -1, we just do/don’t negate it respectively
• And of course, the result, along with the distance is written into a colour for storage in a texture

Reminder: Find the full function in SignedDistanceFieldGenerator.cs

Improved field sweeping

One subtle issue I’ve mostly avoided up until now is that our current technique for sweeping isn’t perfect. When first introducing the 8PSSEDT sweeping algorithm, I showed this diagram:

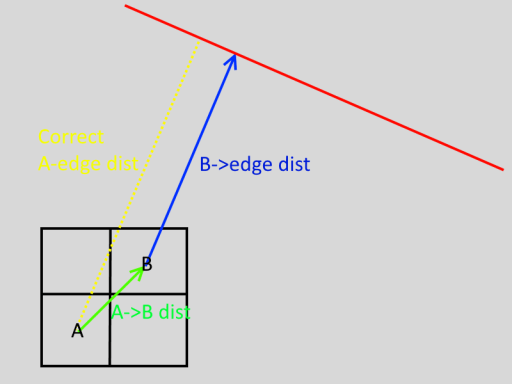

It demonstrates how the approximation of A’s distance based on its neighbour (B) isn’t perfect. Mathematically, we end up with a gradient that points in slightly the wrong direction, and a distance that is slightly larger than it needs to be.

The sweep is most accurate close to the edge of the geometry (where the data is perfect) and gets worse as it moves outwards. Thus most of our distance effects haven’t really suffered. However if we render the contours of the field in blue, the issue is visible:

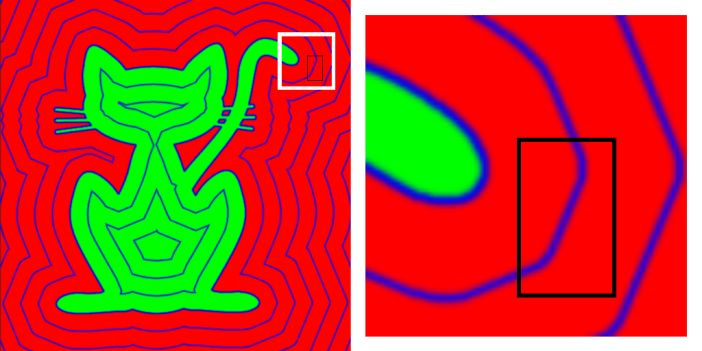

Note how further from the edge of the geometry, the sweep introduces straight contours, rather than nice curvy ones that match the geometry.

Some gradient effects are very sensitive to field accuracy, so I’ve added a new sweeping algorithm for this post called an Eikonal Sweep. This yields accurate distances and gradients, resulting in much nicer contours:

Eikonal sweeping is a much more mathematical approach and requires a whole post in itself, so I won’t cover it here. For now, know that a new EikonalSweep() function has been added to SignedDistanceFieldGenerator, to replace the existing Sweep() function.

Bevels

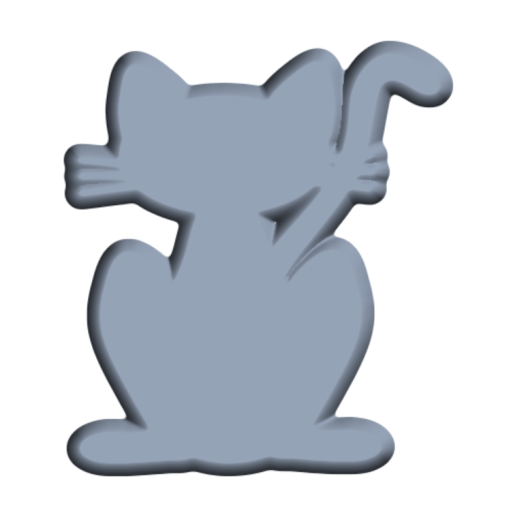

The bevel effect gives an image a fake 3D effect, by adding borders that are shaded in such a way as to look like they are edges:

This rather fancy looking border can do wonders for UI, and if used cleverly can even fake interaction with the lighting from the game world. The basic idea, as shown in the code below, is to use the gradient of the field with a pretend ‘light direction’ to shade the border:

//sample distance as normal
float d = sdf.r + _Offset;

//choose a light direction (just [0.5,0.5]), then dot product
//with the gradient to get a brightness
float2 lightdir = normalize(float2(0.5,0.5));
float diffuse = saturate(dot(sdf.gb,-lightdir));

//by default diffuse is linear (flat edge). combine with border distance
//to fake curvy one if desired
float curvature = pow(saturate(d/_BorderWidth),_BevelCurvature);
diffuse = lerp(1,diffuse,curvature);

//calculate the border colour (diffuse contributes 75% of 'light')
float4 border_col = _Fill * (diffuse*0.75+0.25);
border_col.a = 1;

//choose output
if(d < 0)
{
    //inside the goemetry, just use fill
    res = _Fill;
}
else if(d < _BorderWidth)
{
    //inside border, use border_col with tiny lerp across 1 pixel
    //to avoid aliasing
    res = lerp(_Fill,border_col,saturate(d));
}
else
{
    //outside border, use fill col, with tiny lerp across 1 pixel
    //to avoid aliasing
    res = lerp(border_col,_Background,saturate(d-_BorderWidth));
}

Starting with the first bit:

//sample distance as normal
float d = sdf.r + _Offset;

//choose a light direction (just [0.5,0.5]), then dot product
//with the gradient to get a brightness
float2 lightdir = normalize(float2(0.5,0.5));
float diffuse = saturate(dot(sdf.gb,-lightdir));

This little section is the key to the whole effect. We pick a pretend ‘light direction’ (which could have been passed in as a shader parameter if desired), and dot product it with the gradient of the field. If the gradient directly opposes the light direction, it is assumed to be facing towards the light. If the gradient is perfectly aligned to the light direction, it is facing away from the light. On completion, diffuse contains a value between 0 and 1 indicating how lit the border is at this point.

Skipping over the curvature section for the moment, we then calculate the actual colour of the border.

//calculate the border colour (diffuse contributes 75% of 'light')
float4 border_col = _Fill * (diffuse*0.75+0.25);
border_col.a = 1;

This simple code selects the border colour by applying our lighting to the fill colour. The lighting is effectively taking 25% ambient light, and 75% of the diffuse light.

Finally, probably familiar by now, we select whether to use background, border or fill colour:

//choose output
if(d < 0)
{
    //inside the goemetry, just use fill
    res = _Fill;
}
else if(d < _BorderWidth)
{
    //inside border, use border_col with tiny lerp across 1 pixel
    //to avoid aliasing
    res = lerp(_Fill,border_col,saturate(d));
}
else
{
    //outside border, use fill col, with tiny lerp across 1 pixel
    //to avoid aliasing
    res = lerp(border_col,_Background,saturate(d-_BorderWidth));
}

This is simply choosing _Fill if inside the shape, border_col if within the border, or _Background otherwise. The lerps serve no purpose for the effect other than to avoid aliasing by transitioning cleanly between colours over 1 pixel.

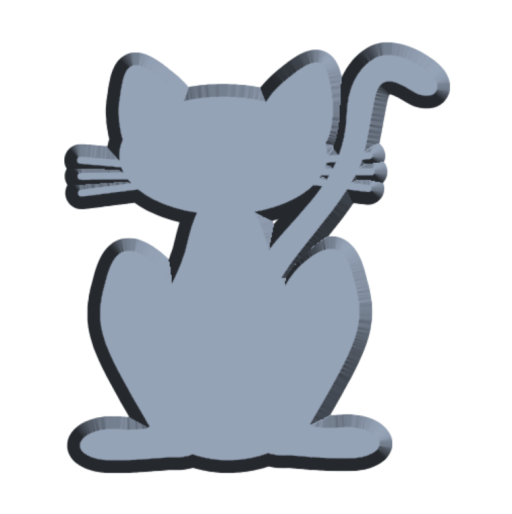

If we were to just use this code, ignoring the curvature section, the result is already visibily ‘3D’:

The extra ‘curvature’ section just tweaks the diffuse lighting value based on distance from the edge of the geometry:

//by default diffuse is linear (flat edge). combine with border distance
//to fake curvy one if desired
float curvature = pow(saturate(d/_BorderWidth),_BevelCurvature);
diffuse = lerp(1,diffuse,curvature);

If _BevelCurvature is 0, curvature will always equal 1. As a result, the lerp will never change the value of diffuse. However, as _BevelCurvature increases, the distance, d, the pixel is from the edge will have an increasingly large effect. This causes diffuse to be increasingly biased towards a value of 1 close to the edge of the geometry. Visually, this produces a curvy look, rather than an angular look:

The one remaining problem you may have spotted is the unpleasant discontinuities in the shading:

These unfortunate artefacts are a result of the fact that our source image simply wasn’t of a high enough quality to get good gradients out. Despite our efforts, the conversion from image to field isn’t perfect and the issue shows up when using gradient based effects. A high curvature tends to hide the issue a little, but the artefact is always there.

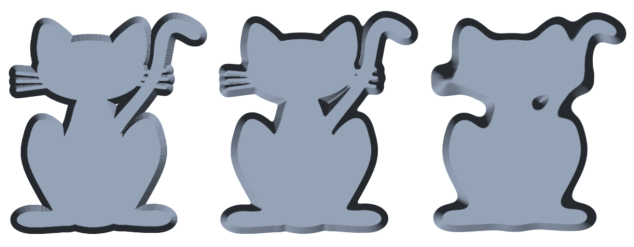

The most obvious solution is to use a very high resolution source image and then downsample. However, if not practical, one option is to blur the field slightly. This will make it less accurate in terms of distances, but soften out ‘crinkles’ in the field. I have added to SignedDistanceFieldGenerator a very simple Soften() function that applies a dumb blur to every pixel to demo the effect:

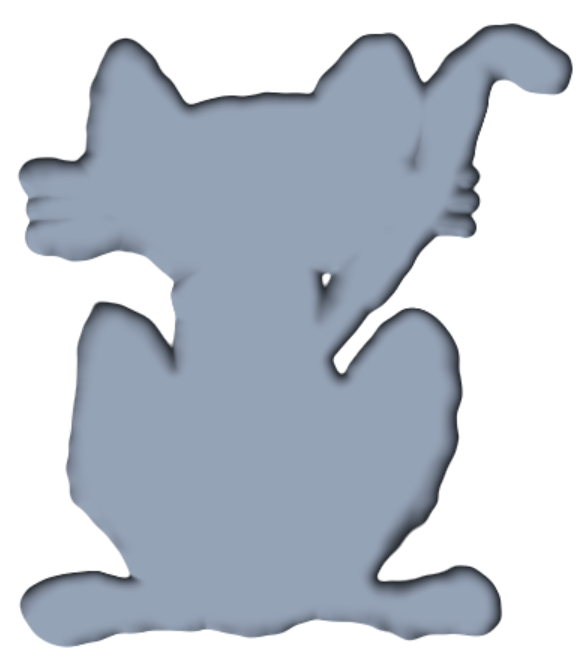

As you can see, the subtle blur in the middle has little effect on the shape of the geometry, but does get rid of the artefacts. On the right the blur is turned right up which results in a blobby field (a fun effect in itself!). Note: please ignore the the fact that the lighting is inverted on the left image – shader bug when taking screen shots!

Whether softening is the right solution for you will depend on your scenario. Ideally for high quality data you start from high quality input assets, but if that’s not practical, sacrificing field accuracy for smoothness may be a good way to go.

Note: if you do decide to rely on softening, I recommend looking up better algorithms than the supplied Soften function, as I knocked it together in 10 minutes and it isn’t very smart!

Finding The Edge

The addition of gradient info to the field yields another handy property – a given point, with both the distance and direction to/from the closest edge, it is easy to find out the actual location of the closest edge. Whilst this isn’t so much an effect, it’s a useful feature and can generate some fun visualisations.

In this diagram we start off with sampling a distance field at a location, p = [1.5,1.5]. At this location, the distance field tells us:

• the closest edge is at a distance, d = 3.53 away
• the gradient, which points directly away from the closest edge, is g =[-0.71,-0.71

Armed with this information, it is easy to see that to get the location of the closest edge point we multiply the gradient by distance and subtract from the input point. Mathematically:

edge point, ep = p – d * g

Or in psuedo code:

GetClosestEdgePoint(Vector2 SrcPoint)
    //read distance,d and gradient,g from field
    Float Distance,Gradient;
    SampleField(SrcPoint, out Distance, out Gradient)

    //calculate and return point
    return SrcPoint - Distance * Gradient
End

We can visualise the results of edge finding by:

• Sampling the SDF at a given UV as normal
• Working out the corresponding edge UV
• Sampling the SDF at the edge UV

If our logic is valid the edge sample should return a distance very close to 0 (as it is the edge!). To begin, we’ll create a function to find and sample the edge:

void sampleedge(float4 sdf, float2 uv, out float4 edgesdf, out float2 edgeuv)
{
    edgeuv = uv - sdf.gb*sdf.r*_MainTex_TexelSize.xy;
    edgesdf = samplesdf(edgeuv);
}

Next, we’ll add a new edge finder visualization to the shader:

else if(_Mode == 12) //EdgeFind
{
    //use sampleedge to get the edge field values and uv
    float2 edgeuv;
    float4 edgesdf;
    sampleedge(sdf,uv,edgesdf,edgeuv);

    //visualize error threshold of 1 pixel in r, and highlight geometry edge with b
    float edged = edgesdf.x;
    res.r = abs(edged) > 1 ? 1 : 0;
    res.g = 0;
    res.b = 1-saturate(abs(sdf.r));
}

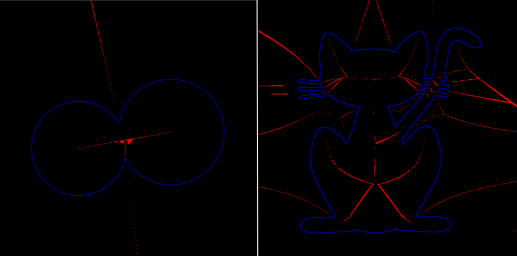

This simple shader samples the edge distance field, and outputs a red pixel if the error is greater than 1. As an extra tweak, it highlights the actual edge blue so we can still see the geometry:

The result, as you can see, is OK but far from perfect. Black pixels represent areas that successfully found the edge. However we can see distinct lines, worst on the cat, where the test failed. Comparing the edge finder to the gradient view it is possible to see where these errors occurred:

Any SDF contains discontinuities – areas where 2 neighbouring pixels have different closest edges. On the right hand image where the gradient is visualised, these discontinuities show up as sharp changes in colour. In the left image these correspond precisely to areas where edge finding failed.

The simplest way to solve this is to simply keep stepping toward the edge, getting a little bit closer each time:

bool GetClosestEdgePoint(Vector2 Point, int MaxSteps, out Result)
    For(i = 1 to MaxSteps)
        Float Distance,Gradient;
        SampleField(Point, out Distance, out Gradient)
        if(abs(Distance) < 0.5)
            break
        Point -= Distance * Gradient
    End
    Result = Point
    return abs(Distance) < 0.5
End

This pseudo code will iterate until a point has been found within 0.5 pixels or reaches a predefined maximum number of steps.

To implement it in the shader, we’ll introduce a new function called steptowardsedge, that takes as an input a sample and UV, then updates them both with a sample and UV closer to the edge:

void steptowardsedge(inout float4 edgesdf, inout float2 edgeuv)
{
    edgeuv -= edgesdf.gb*edgesdf.r*_MainTex_TexelSize.xy;
    edgesdf = samplesdf(edgeuv);
}

The sampleedge function is then updated to keep sampling until the edge is reached:

bool sampleedge(float4 sdf, float2 uv, out float4 edgesdf, out float2 edgeuv, out int steps)
{
    edgesdf = sdf;
    edgeuv = uv;
    steps = 0;

    [unroll(8)]
    for(int i = 0; i < _EdgeFindSteps; i++)
    {
        if(abs(edgesdf.r) < 0.5)
            break;
        steptowardsedge(edgesdf,edgeuv);
        steps++;
    }

    return abs(edgesdf.r) < 0.5;
}

This new version also returns true/false to indicate whether the edge was found, and outputs the number of steps taken. Using this new data, we can update the edge find visualisation to render a hue that shows how many steps were taken, or simply shows black if the edge was never found:

else if(_Mode == 12) //EdgeFind
{
    //use sampleedge to get the edge field values and uv
    float2 edgeuv;
    float4 edgesdf;
    int edgesteps;
    bool success = sampleedge(sdf,uv,edgesdf,edgeuv,edgesteps);

    //visualize number of steps to reach edge (or black if didn't get there')
    res.rgb = success ? HUEtoRGB(0.75f*edgesteps/8.0f) : 0;
}

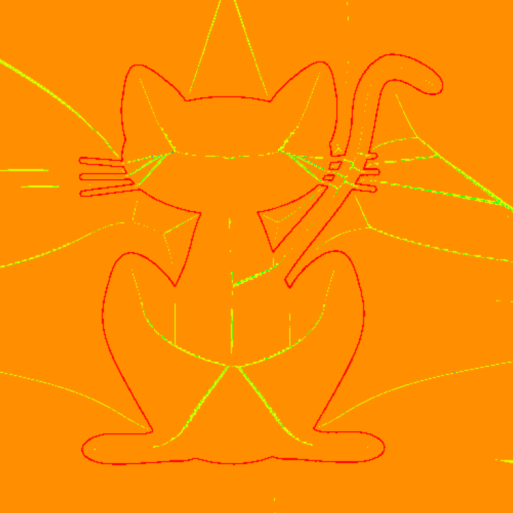

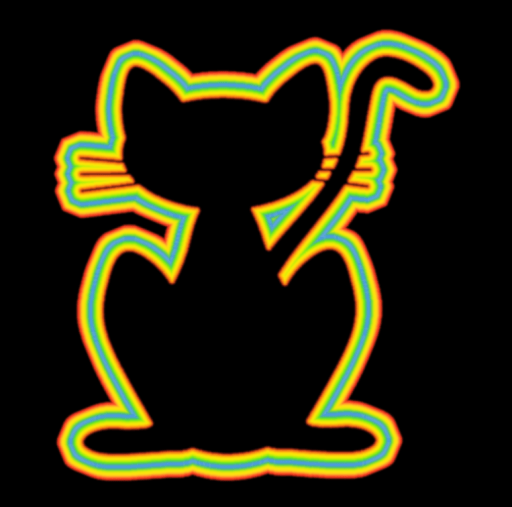

Running this visualisation on the cat field gives us this image:

Here we see:

• Red pixels took 0 steps – i.e. they are already on the edge
• Orange pixels (the majority) took 1 step
• Yellow pixels took 2 steps
• Green pixels took 3 steps
• No black pixels are visible, as the edge never failed to be found

This technique can also be handy if you’re dealing with a less accurate field, having softened it to reduce artefacts as mentioned in the bevels section:

Here you can see many more pixels had to take 2 steps (yellow) due to the less accurate field, however they still all got there eventually.

Noise

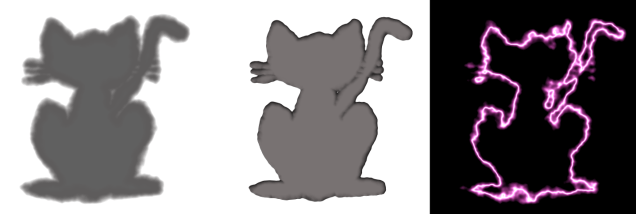

Noise based effects aren’t specific to SDFs, but they certainly work well together. In case you’re not familiar with the concept of noise, it typically refers to a way of generating a grid of values that whilst random, are still continuous (think clouds instead of static):

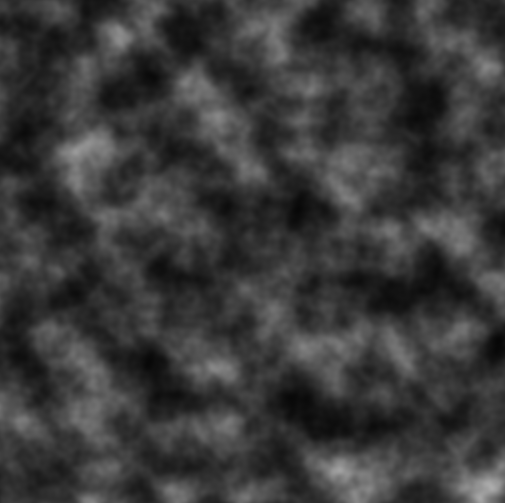

Above is a noise texture, generated by layering Perlin Noise at different frequencies, named after the father of this technique – Ken Perlin. I don’t want to go into too much depth on how noise works for this blog though – the key is, we’ve got a texture like the one above! In fact, we have a 4 channel texture, with a different ‘cloud pattern’ stored in each channel.

For reference, the function that generates it works by sampling Unity’s built in Perlin noise in multiple octaves:

Color[] GenerateNoiseGrid(int w, int h, int octaves, float frequency, float lacunarity, float persistance)
{
    //calculate scalars for x/y dims
    float xscl = 1f / (w - 1);
    float yscl = 1f / (h - 1);

    //allocate colour buffer then iterate over x and y
    Color[] cols = new Color[w * h];
    for (int x = 0; x < w; x++)
    {
        for (int y = 0; y < h; y++)
        {
            //classic multi-octave perlin noise sampler
            //ends up with 4 octave noise samples
            Vector4 tot = Vector4.zero;
            float scl = 1;
            float sum = 0;
            float f = frequency;
            for (int i = 0; i < octaves; i++)
            {
                for (int c = 0; c < 4; c++)
                    tot[c] += Mathf.PerlinNoise(c * 64 + f * x * xscl, f * y * yscl) * scl;
                sum += scl;
                f *= lacunarity;
                scl *= persistance;
            }
            tot /= sum;

            //store noise value in colour
            cols[y * w + x] = new Color(tot.x, tot.y, tot.z, tot.w);
        }
    }
    return cols;
}

This function is used to generate the pixel colours for a texture, which is then stored in the SDF class as m_noise_texture, and passed into the shader as _NoiseTex.

We then have a tiny function in the shader that samples the 4 channel texture, and combines each channel into a single animated value.

//samples the animated noise texture
float samplenoise(float2 uv)
{
    float t = frac(_NoiseAnimTime)*2.0f*3.1415927f;
    float k = 0.5f*3.1415927f;
    float4 sc = float4(0,k,2*k,3*k)+t;
    float4 sn = (sin(sc)+1)*0.4;
    return dot(sn,tex2D(_NoiseTex,uv));
}

Although it looks a little funky, all this function is really doing is taking a parameter called _NoiseAnimTime and using it to generate a vector, sn that contains 4 different values between 0 and 1. This is then combined with the sampled _NoiseTex to get an output noise value between 0 and 1 that animates over time:

A cleverer but more expensive approach might have been to fully generate noise within the shader. This is entirely achievable on modern GPUs, but impractical on lower end mobile devices.

Now we’re going to use the output of this samplenoise function within the samplesdf function to modify the sampled distance. Our sample function now looks like this:

//helper to perform the sdf sample
float4 samplesdf(float2 uv)
{
      //sample distance field
    float4 sdf = tex2D(_MainTex, uv);

    //if we want to do the 'circle morph' effect, lerp from the sampled
    //value to a circle value here
    if(_CircleMorphAmount > 0)
    {
        float4 circlesdf = centeredcirclesdf(uv,_CircleMorphRadius);
        sdf = lerp(sdf, circlesdf, _CircleMorphAmount);
    }

    //re-normalize gradient in gb components as bilinear filtering
    //and the morph can mess it up
    sdf.gb = normalize(sdf.gb);

    //if edge based noise is on, adjust distance by sampling noise texture
    if(_EnableEdgeNoise)
    {
        sdf.r += lerp(_EdgeNoiseA,_EdgeNoiseB,samplenoise(uv));
    }

    return sdf;
}


Assuming _EnableEdgeNoise is true, the updated function now:

• Reads a noise value from 0 to 1
• Uses it to lerp between 2 input parameters: _EdgeNoiseA and _EdgeNoiseB
• Adds the result to the sampled distance

As all our effects work by calling samplesdf, they will now all support reading the ‘noisy’ distances. Playing with different effects and noise values, the results can be very varied and quite pleasing:

And of course, because it’s animated…

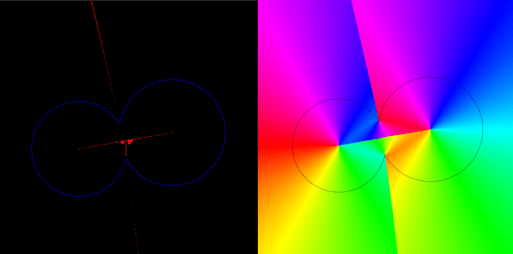

A note on broken fields

It’s worth mentioning at this point that both the earlier morph effect, and our updated noise effect break the field a little. By this I mean that after fiddling with the sampled values they are no longer guaranteed to represent the distance to the closest edge. This is surprisingly well hidden with most of the effects so far, as they only really care about values very close to the edge of the geometry where the errors are smallest. However, we can spot the result in the bevel effect:

One result of the broken field is that our calculated gradient values no longer match those of the field with noisy edges applied. As a result, the wibbly edge is still shaded as though it were flat.

There are many approaches to solving this issue depending on your use case. At the extreme end, you might perform your morphing or noise on the CPU, then do a full re-sweep of the field every frame. On the other hand, if the problem isn’t particularly visible, you might do nothing at all!

For this particular situation, we’re going to ignore the distance errors, but attempt to fix the gradient on the fly so the bevel works nicely. To do so, we’ll add a new function to the shader designed to only sample the distance, but ignore gradient:

//cut down version of samplesdf that ignores gradient
float samplesdfnograd(float2 uv)
{
      //sample distance field
    float4 sdf = tex2D(_MainTex, uv);

    //if we want to do the 'circle morph' effect, lerp from the sampled
    //value to a circle value here
    if(_CircleMorphAmount > 0)
    {
        float4 circlesdf = centeredcirclesdf(uv,_CircleMorphRadius);
        sdf = lerp(sdf, circlesdf, _CircleMorphAmount);
    }

    //if edge based noise is on, adjust distance by sampling noise texture
    if(_EnableEdgeNoise)
    {
        sdf.r += lerp(_EdgeNoiseA,_EdgeNoiseB,samplenoise(uv));
    }

    return sdf;
}

That should look pretty familiar! Now, we’ll add the following lines to the main sdf sampling function:

    //if requested, overwrite sampled gradient with one calculated live in
    //shader that takes into account morphing and noise
    if(_FixGradient)
    {
        float d = sdf.r;
        float sign = d > 0 ? 1 : -1;
        float x0 = samplesdfnograd(uv+_MainTex_TexelSize.xy*float2(-1,0));
        float x1 = samplesdfnograd(uv+_MainTex_TexelSize.xy*float2(1,0));
        float y0 = samplesdfnograd(uv+_MainTex_TexelSize.xy*float2(0,-1));
        float y1 = samplesdfnograd(uv+_MainTex_TexelSize.xy*float2(0,1));

        float xgrad = sign*x0 < sign*x1 ? -(x0-d) : (x1-d);
        float ygrad = sign*y0 < sign*y1 ? -(y0-d) : (y1-d);

        sdf.gb = float2(xgrad,ygrad);
    }

This rather expensive function performs the same calculations within the shader that our earlier CPU code used to calculate the gradient by sampling neighbours. However, by being run in the shader and accounting for morphing / noise, it provides much more accurate gradients:

Note the shading on the wobbly edges now contains matching shadows.

Summary

That concludes what I think is probably the main section my intro to SDFs. Across the 7 posts you should have learnt the core principles of signed distance fields and seen how they can be used in 2D to generate some useful effects. Some future things to look at that I may cover, or you may wish to investigate are:

• 3D fields. These work exactly like 2D fields in every way! Visualising them can be tricky though. A good place to start is to search for the marching cubes or marching tetrahedrons algorithms online.
• Physics. Signed distance fields are ideally suited to collision detection and ray casting, as they make it very easy to find out the distance to an edge from any given point. If you’re looking at making a game with very bumpy or modifiable terrain, SDFs are ideal.
• CSG (constructive solid geometry) is the technique of combining shapes in different ways (primarily ‘add’ and ‘subtract’) to get more complex geometry.
• Lighting. Both in 3D and 2D, using distance fields to represent lighting volumes can be a very effective way of generating complex dynamic lighting in a scene.
• Sparse fields. In 3D especially fields can get very memory hungry. However many have used a technique in which fields are stored in a tree, with high resolution data only maintained close to the surface of geometry.
• Compression. Throughout this blog we’ve stored data in fairly expensive floating point textures. A simple modification is to store field distances in classic 1 byte per channel textures. This is achieved by storing distances as values between 0 and 1, then rescaling them to cover large signed ranges.

Maybe if I get some requests I’ll cover some of those at some point. Until then, enjoy the code here:

https://github.com/chriscummings100/signeddistancefields

Enjoy!

Well we’re on number 7 and it’s time to start using the fields for some more interesting rendering. This post will focus exclusively on adding to the signed distance field shader some exciting new modes with which to render the field! All the code can be found on github here.

Soft Borders

The first and arguably one of the most useful tools in the SDF toolkit is the ability to render soft borders to your geometry. Thus far the most advanced aspect of our SDF shader is the ability to render a solid shape with coloured borders and a coloured background. However, zooming in on our cat:

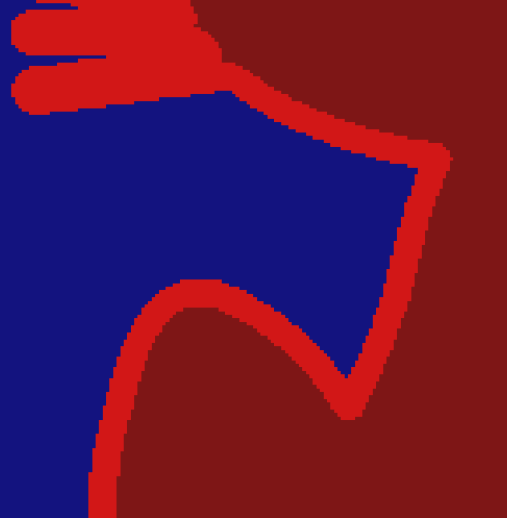

You can see that even though this is rendered using a 512×512 pixel field, we still get jaggy edges. This is no longer down to a quality issue with the field – we’ve simply hit the resolution of the screen, and, unable to blend, have had to choose for each pixel 1 of 3 colours (background, border or fill). Naturally we’ll see ‘stepping’ occurring along the edges, otherwise known as aliasing.

To address it, we’ll add a new mode to the sdffunc function in SignedDistanceField.shader:

else if (_Mode == 7) //SoftBorder
{
    float d = sdf.r + _Offset;

    if (d < -_BorderWidth)
    {
        //if inside shape by more than _BorderWidth, use pure fill
        res = _Fill;
    }
    else if (d < 0)
    {
        //if inside shape but within range of border, lerp from border to fill colour
        float t = -d / _BorderWidth;
        t = t * t;
        res = lerp(_Border, _Fill, t);
    }
    else if (d < _BorderWidth)
    {
        //if outside shape but within range of border, lerp from border to background colour
        float t = d / _BorderWidth;
        t = t * t;
        res = lerp(_Border, _Background, t);
    }
}

Here the distance is calculated as normal. Just like the ‘solid with border’ mode, we take the fill colour if d < -_BorderWidth, and stick with the background colour if d > _BorderWidth. However, within the border region we:

• Calculate a value (t) between 0 and 1 based on signed distance (d) from the geometry
• Multiply t by itself to get a curvy blend instead of a linear blend
• Use t to lerp from the border colour to either the fill or background depending on whether inside or outside or the geometry

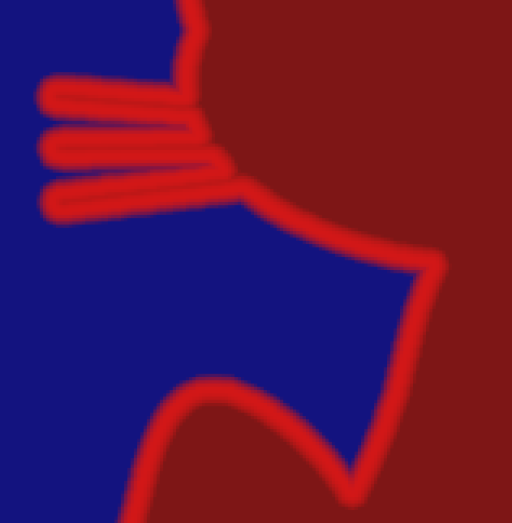

The result is a gentle blend from Background to Border to Fill at the edge of the field:

And of course, as usual, we can play with the border width and offset variables to make thinner/fatter the border or the whole cat:

Neon (aka bloom)

Our human brains assume something is emitting or reflecting bright light if it appears ‘saturated’, turning from coloured to white at the brightest point. A classic example of this is a neon sign, which appears coloured around the edges but almost-white at the centre:

This fun effect was produced with some very simple code:

else if (_Mode == 8) //Neon
{
    float d = sdf.r + _Offset;

    //only do something if within range of border
    if (d > -_BorderWidth && d < _BorderWidth)          {                  //calculate a value of 't' that goes from 0->1->0
        //around the edge of the geometry
        float t = d / _BorderWidth; //[-1:0:1]
        t = 1 - abs(t);             //[0:1:0]

        //lerp between background and border using t
        res = lerp(_Background, _Border, t);

        //raise t to a high power and add in as white
        //to give bloom effect
        res.rgb += pow(t, _NeonPower)*_NeonBrightness;
    }
}

As with the soft border effect earlier, we utilise the distance value and the border with to get a value (t) called the interpolator. In this case we manipulate it mathematically to be a value that goes from 0 to 1 to 0 around the edge of the geometry. Again, similar to the soft border, we then use ‘t’ to interpolate from background colour to border colour.

The extra ingredient, using 2 new parameters, raises ‘t’ to a high power (make it a ‘sharp curve’), then simply adds it to the output colour. This is in effect adding some whiteness into the output which sharply curves up in brightness close to the edge of the geometry.

Technically speaking this is a simulation of the common ‘bloom’ effect, usually applied as a post effect in games to highlight bright areas of the screen. Whilst good quality bloom can be tricky to achieve on low end devices, if you just want some neon looking text or objects, the SDF approach can be extremely effective with no real GPU overhead.

Edge Textures

Up until now we’ve used some simple maths to blend between various colours at the edge of the field – first to provide simple softened edges, then to get a neon style effect that simulates bloom. However, to get a more flexible (and art driven) effect, we can use ‘edge textures’. Note: these are often referred to as ‘gradient textures’, but ‘gradient’ is an important term with different meanings in SDFs, so I’m reserving it for later!

Here a similar algorithm to the earlier ones has been used, however the ‘t’ value calculated from distance-to-edge has been used to sample the following texture, created in Paint.Net:

The code is relatively simple, and very similar to the earlier effects

else if (_Mode == 9) //Edge Texture
{
    float d = sdf.r + _Offset;

    if (d < -_BorderWidth)
    {
        //if inside shape by more than _BorderWidth, use pure fill
        res = _Fill;
    }
    else if (d < _BorderWidth)
    {
        //if inside shape but within range of border, calculate a
        //'t' from 0 to 1
        float t = d / _BorderWidth; //[-1:0:1]
        t = (t+1)*0.5;             //[0:1]

        //now use 't' as the 'u' coordinate in sampling _EdgeTex
        res = tex2D(_EdgeTex, float2(t,0.5));
    }
}

Just as with the soft border we’re taking the _Fill colour if inside the geometry by more than _BorderWidth, or sticking with the background colour if outside the geometry by more than _BorderWidth. Within the border, we calculate an interpolator (t), and use it to sample the new _EdgeTex texture parameter.

Note that this arguably only needs a ‘1D’ edge texture, but as they don’t really exist, the shader simply samples horizontally along the centre of a 2D texture (i.e. at v = 0.5).

One of the benefits of this effect is that with little effort we can get stylistic colouring that’d be a pain to reproduce mathematically. For example, using this edge texture:

We get this rather stylish kitty:

Drop shadows

This classic effect is incredibly useful for HUDs in games, as it helps deal with the fact that you can’t rely on your in game UI elements always being drawn on top of the same coloured background. Score text in the top left will be over a dark background in a night scene, and a bright background in a day scene. The solution is generally to add a ‘shadow’ to your text or HUD elements, so their outline can be made out whatever the background:

The basic effect is often achieved without SDFs by simply rendering the geometry twice, first the shadow at a slight offset, then the fill over the top. Our SDF version takes pretty much the same approach:

else if (_Mode == 10) //Drop shadow (Blog post 7)
{
    //sample distance as normal
    float d = sdf.r + _Offset;

    //take another sample, _ShadowDist texels up/right from the first
    float d2 = tex2D(_MainTex, uv+_ShadowDist*_MainTex_TexelSize.xy).r + _Offset;

    //calculate interpolators (go from 0 to 1 across border)
    float fill_t = 1-saturate((d-_BorderWidth)/_BorderWidth);
    float shadow_t = 1-saturate((d2-_ShadowBorderWidth)/_ShadowBorderWidth);

    //apply the shadow colour, then over the top apply fill colour
    res = lerp(res,_Border,shadow_t);
    res = lerp(res,_Fill,fill_t);
}

The sdffunc function is now being passed an extra argument- the uv from which it was read. We use this combined with the new _ShadowDist parameter and the texel size of the signed distance field to take a 2nd sample from the field, offset diagonally from the 1st. Note that unity sets things up such that _MainTex_TexelSize.xy = [1/_MainTex.width,1/_MainTex.height].

Next, some simple maths is applied to each of the distance samples to give an interpolator (t) that starts at 1 ‘inside’ the geometry, and transitions to 0 over the border. These are calculated for the fill as normal, and then for the shadow using the new _ShadowBorderWidth parameter. The purpose of these interpolators is to allow us to create soft transitions, as with the earlier soft border effect.

Finally, the shadow is applied using our _Border parameter for the colour, then the fill on top of it. The basic result with a small border width and identical shadow border width looks like this:

Nice! However this basic setup has 2 key issues that none SDF based approaches also suffer from. Firstly, a shadow only shows in one direction, meaning the full geometry wont always be outlined (sometimes but not always desirable). Secondly, too large a shadow distance shows ugly areas that highlight we’re just rendering 1 image on top of another:

Fortunately, with the SDF approach, our ability to adjust the size of the shadow’s border means we can address both these issue at once, fattening the shadow to hide concave areas and give some subtle outline all round the shape:

Morphing

The final basic effect for this section is the ability to morph between different fields very easily. Here, for example, is a circle morphing into a cat:

First up, we’ll add a simple function into the shader that evaluates the field for a centered circle:

float4 centeredcirclesdf(float2 uv, float radius)
{
    //calculate offset from [0.5,0.5] in uv space, then multiply
    //by _MainTex_TexelSize.zw to get offset in texels
    float2 offset_from_centre = (uv - 0.5) * _MainTex_TexelSize.zw;

    //signed distance for a circle is |offset| - radius
    float signeddist = length(offset_from_centre) - radius;

    //build result: [signeddist,0,0,1]
    float4 res = 0;
    res.x = signeddist;
    res.yz = 0;
    res.w = 1;
    return res;
}

Any field could be used, but for the sake of the demo, this saves us generating the field texture for a circle and passing it through as a parameter (call that an exercise for the reader!).

Next, we’ll create a new function called samplesdf. This will be a wrapper that replaces our existing tex2D calls:

float4 samplesdf(float2 uv)
{
      //sample distance field
    float4 sdf = tex2D(_MainTex, uv);

    //if we want to do the 'circle morph' effect, lerp from the sampled
    //value to a circle value here
    if(_CircleMorphAmount > 0)
    {
        float4 circlesdf = centeredcirclesdf(uv,_CircleMorphRadius);
        sdf = lerp(sdf, circlesdf, _CircleMorphAmount);
    }

    return sdf;
}

The first line simply samples the input distance field at the given uv as normal. If _CircleMorphAmount > 0 we then go on to sample the circle distance field. The 2 distance samples are then combined with a lerp to get a result, which is returned.

Finally, existing calls to tex2D, such as that in the core fragment shader are replaced with calls to samplesdf:

//sample distance field
float4 sdf = samplesdf(i.uv);

All we are doing here is sampling the distance for 2 fields (in this case a cat and a circle) and lerping between them. The result can be fed into any of the existing effects and it just works:

Whilst you may not find many opportunities in games to morph between cats and circles, this simple effect can be a very efficient way of creating elegant UI transitions such as dialog boxes appearing / disappearing. In the past I’ve also made more creative use of it to animate lightning and particle based effects (shameless No Stick Shooter plug)!

Summary

This section has covered a variety of ways to use the distance sampled from a field to achieve simple effects, generally falling into a few categories:

• Avoiding aliasing with soft borders
• Creating border effects
• Creating drop shadows
• Transitions (aka morphing)

By combining and tweaking these in different ways, simple low resolution distance fields can create a huge range of effects, all of which can of course be animated and used either in game (if the style is right) or for very flexible UI elements.

However, an issue thus far is that all the effects above have been pretty ‘1 dimensional’. All they’ve really used is the distance, and as such the type of effects is fairly limited. In the next blog I’ll get on to how field gradients and noise can make things more interesting.

Signed Distance Fields Part 8: Gradients, bevels and noise
